Product Overview: A Thick Hot Melt Film for Strong Bonds
Our Clear Polyurethane Film is a thicker version of our high-transparency hot melt film. The nominal thickness is 0.018 mm, while the actual thickness ranges from 0.016 to 0.020 mm.
This thickness is designed for high-end outdoor clothing that requires strong bonding performance. For example, outdoor jackets that must withstand 50 wash cycles, or ski suits that need to resist heavy rubbing and stretching.
This Clear Polyurethane Film features a high-transparency matte PH finish. It provides strong bonding strength while maintaining the clear and bright appearance required for premium outdoor garments. The breathability performance is also excellent.
Key Data: Water Pressure and Breathability for Thick High Transparency Film
The table below shows the water pressure performance of this thicker high-transparency film.

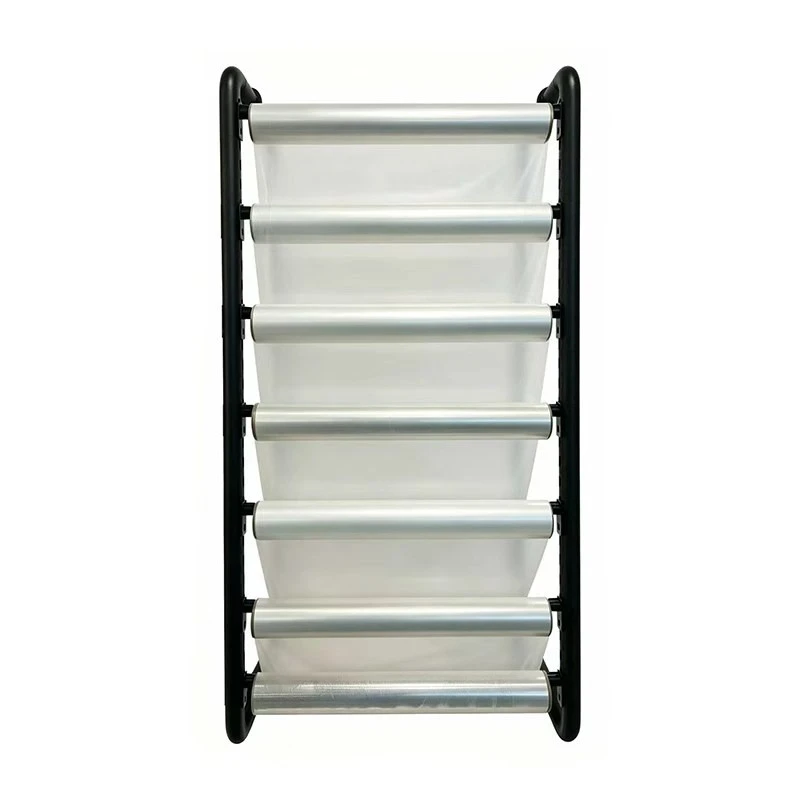

Product drawing
|
Product Series |
Thickness Range (mm) |
Water Pressure Value (mm/H₂O) |
| High Transparency | 0.010 - 0.012 | 8000 - 10000 |
| High Transparency | 0.013 - 0.015 | 11000 - 14000 |
| High Transparency | 0.016 - 0.020 | 13000 - 16000 |
The next table shows breathability test data.
| Product Series | Thickness Range (mm) | Test Version | Breathability Value (g/m²/24hrs) |
| High Transparency | 0.010 - 0.012 | US Standard 2000 | 8500 - 9000 |
| High Transparency | 0.013 - 0.015 | US Standard 2000 | 8000 - 8500 |
| High Transparency | 0.016 - 0.020 | US Standard 2000 | 8000 ± |
| High Transparency | 0.010 - 0.012 | Japanese B1 Method | 100,000+ |
| High Transparency | 0.013 - 0.015 | Japanese B1 Method | 80,000+ |
| High Transparency | 0.016 - 0.020 | Japanese B1 Method | 80,000+ |
Why Choose This Film: Stronger Bonds for Wash Tests
The bonding strength of a hot melt film is directly related to its thickness. A thicker film provides a thicker adhesive layer, which results in stronger bonding performance.
The thickness range of 0.016 to 0.020 mm delivers significantly higher bond strength compared to 0.010 to 0.012 mm. The difference becomes especially clear in wash durability tests.
Many major brands specify this thickness range for their products. Our Clear Polyurethane Film uses polyurethane hot melt adhesive, which offers excellent wash resistance and low-temperature flexibility. It remains soft even at -30°C, preventing stiffness or cracking in ski wear under extreme conditions.
Our production capacity ranks among the top in China. We can handle orders of any size, and stock is readily available for fast delivery.
